TEAC A 2300 SX 4-track tape recorder

No shipping!
Manufacturer : Teac
- Model: A-2300 SX
- Type: Coil stereo
- Year of manufacture: 1976 - 1978
- Made in : Japan
- Color: silver / black, wooden sides
- Remote control: yes, RC-120 wired remote control
- Power consumption:
- Dimensions: 440 x 392 x 210 mm (WxHxD)
- Weight: 18 kg
◦ Dust cover TZ-220: 3,500 yen, 60 DM
◦ RC-120 cable remote control: 10,500 yen, 160 DM
◦ Device holder: CS-420: 11,500 yen, 170 DM

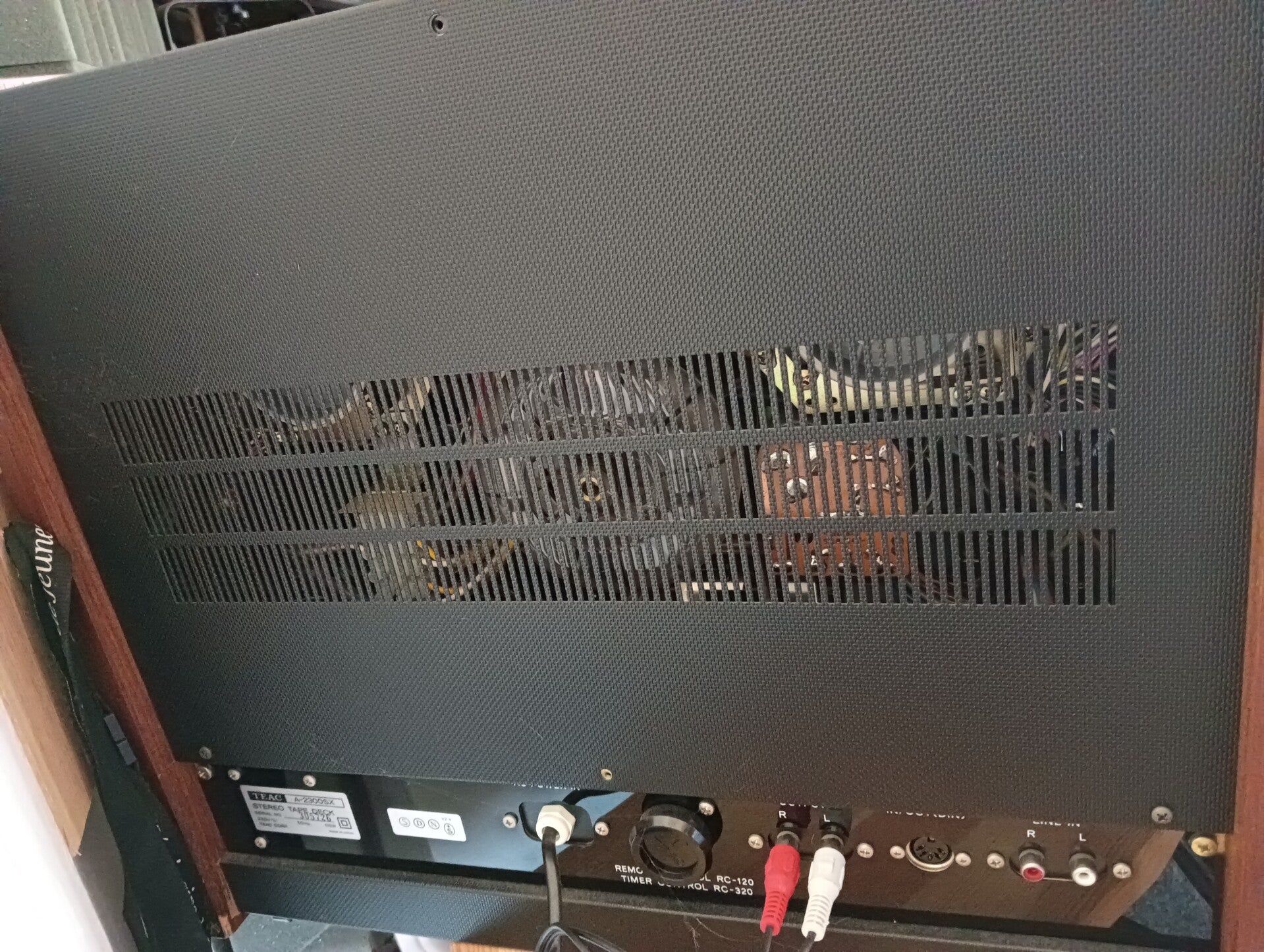

Inputs:
◦ Microphone: 0.25 mV (0.6-10 K-Ohms) -.
◦ Line: 100 mV (50 K-Ohms)
◦ Radio: 10 mV (47 K-Ohm)
- Outputs: ◦ DIN: 0.3 V 10 K-Ohm) -
◦ Line: 0.3 V (10 K-Ohm)
◦ Headphones: 0.05 V (8 ohms)
2 channels, stereo tape deck
- Max. length Coil diameter: 18 cm
- Drive type: 2 eddy-current winding motors and 1 synchronous hysteresis sound motor
- Head equipment: 1 recording head, 1 playback head, 1 Permaflux erasing head
- Tracks: 4
- Tape speeds: 9.5 cm/s, 19 cm/s
- Total frequency response:
◦ at 9.5 cm/sec: 30 - 20,000 Hz
◦ at 19 cm/sec: 30 - 28'000 Hz
- Crosstalk attenuation at 1 kHz in stereo mode: 50 dB
- Resting signal-to-noise ratio at full scale:
◦ at 9.5 cm/sec: 58 dB
◦ at 19 cm/sec: 58 dB
- Synchronization variations:
◦ at 9.5 cm/sec: ± 0.1%.
◦ at 19 cm/sec: ± 0.08%.
- Max. rate of change Deviation from mean speed :
◦ at 19 cm/sec: ± 1%.
- Deletion attenuation:
◦ at 19 cm/sec: 68 dB
- Premagnetization and blanking frequency: 100 kHz

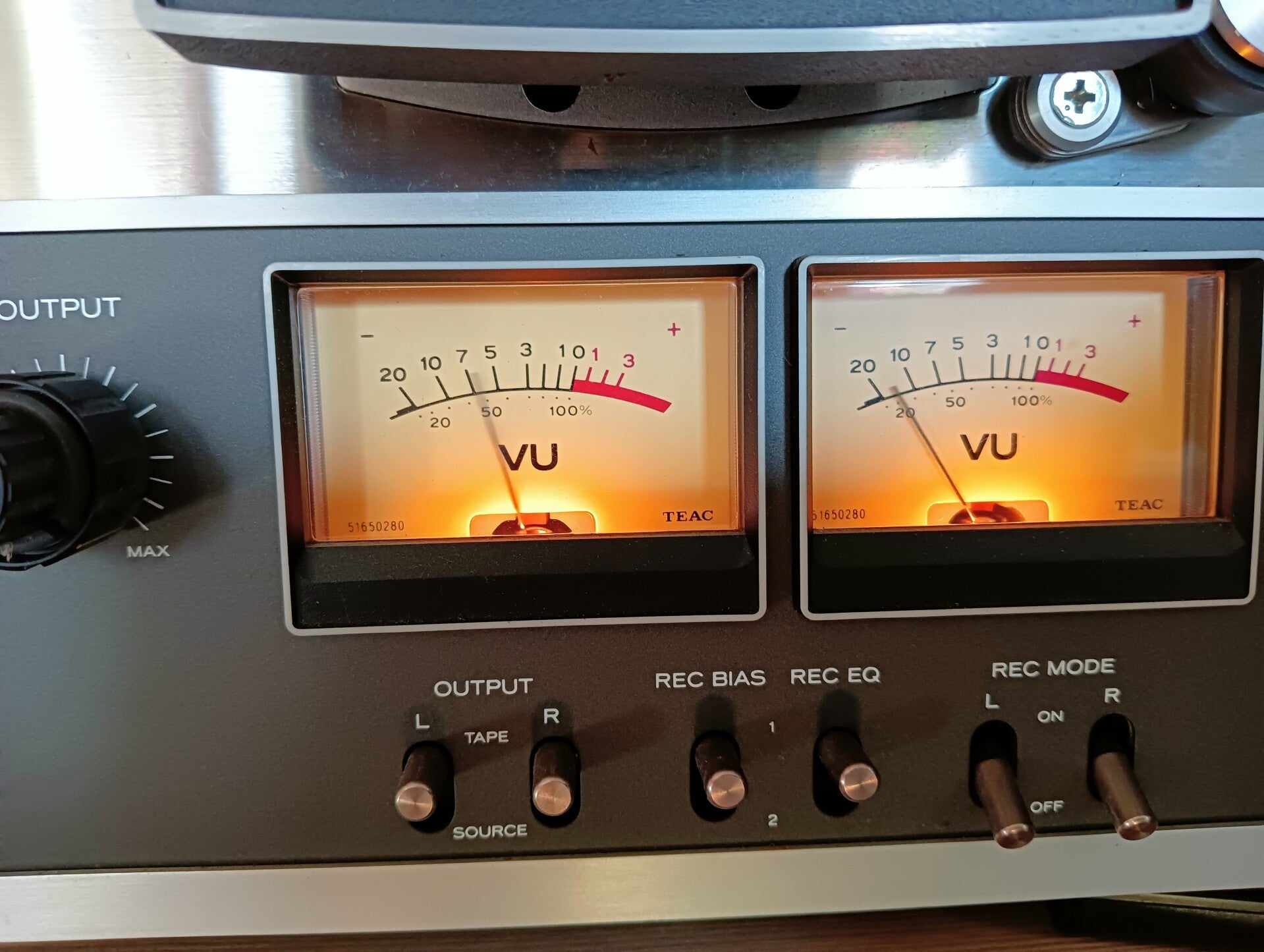

2 VU-meters, frequency linear
- Individually switchable left/right backband control
- Individually switchable left/right recording
- Recording equalization and premagnetization switchable
- Individually adjustable left/right inputs and outputs
- Relay drive logic -
